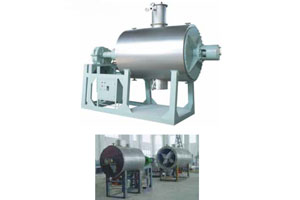

PZG Series Rake Vacuum Dryer
It is an innovation horizontal batch-type vacuum drier improved on the basis of introduced technology of other harrow driers.
Detailed description
Features：
● Being installed stirring in the machine, it makes raw material in cylinder form the state of continuous circle inside the cylinder, so the uniformity to be heated of raw material is raised geatly.
● Being installed stirring in the machine, pulpiness, paste-like mixture or powder raw materials can be dried easy.
● Special idea of discharging poet, better sealing and few material accumulating, discharge is easy.
● There are two seal model: mechanical and filling.
● The design supply good seal and long life.
● The special technics of shaft and harrow suplly high strength and concentric.
● The medium in shaft and adding vibrating equipment will be equipped with requirement.
Principlen：
● It is an innovation horizontal batch-type vacuum drier improved on the basis of introduced technology of other harrow driers. The moister of wet material will be evaporated by heat transmission. The stirrer with squeegee will remove material on hot surface and move in the container to form cycle flow. The evaporated moisture will be pumped by vacuum pump.
● Our company is specialized in producing Harrow Dryer.
Application：
● The materials from such as the medicine , food , chemical industry, etc. can be dried.
● Suitable for pulpiness, paste-like mixture or power raw material.
● Temperature sensing material requiring the low temperature to be dried.
● Raw materials that are easy to oxidize or explode and have strong irritative or toxic.
● Demand to retrieve of the organic solvent.
Technical：
