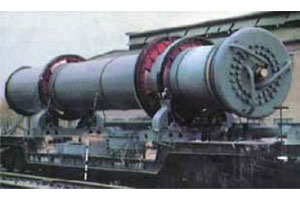

HZG Series Revolving Cylinder Dryer
When the damp raw material is fed from one terminal, it is turned over through blades that are distributed inside the cylinder and will be distributed uniformly in the drier and contact fully with the countercurrent hot air. In this way, the process of heat conduction is increased.
Detailed description
Features：
● High in the etent of mechanization and strong in production capacity.
● The resistance for fluid passing through the cylinder is small. The consumption of power and energy is low.
● It has strong adaptability to the properties of raw material. The operation is stable. The cost of operation is cheap
● The uniformity of dried substance is good.
Description：

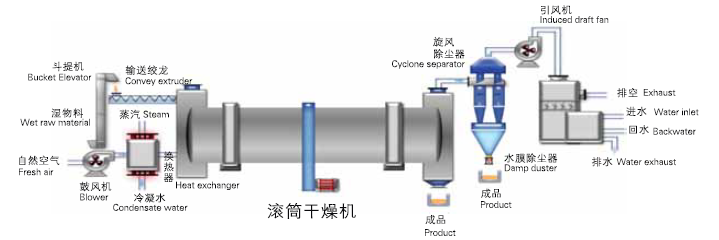

When the damp raw material is fed from one terminal, it is turned over through blades that are distributed inside the cylinder and will be distributed uniformly in the drier and contact fully with the countercurrent hot air. In this way, the process of heat conduction is increased. During the period of dry, under the effect of incine blades and hot air stream, raw material can be moved to the star section of drier and discharged from disharged form discharging valve.
Practical：
Applicable for drying big particles, heavy particles in chemical, mining, and metallurgy, such as mining area, cinder of blast furnace, coal, powder of metal, phosphate fertilizer and thiamine. For drying the powder or particles with special requirements, such as HP foaming blowing agent, residule of alcohol, light calcium carbonate, active clay, magnetic powder, graphite, and residue of medicine. For materials to be dried under low temperature and large lot continuous production .
Technical parameters：
| 型號 | 直接加熱順流式 | 直接加熱逆流式 | 復合加熱 | |||
| 物料種類 | 礦石 | HP發泡劑 | 高爐礦渣 | 硫銨 | 磷肥 | 煤 coal |
| 處理量kg/h | 1000 | 466 | 15000 | 20000 | 12000 | 5000 |
| 初含水量 % | 30 | 13 | 6 | 1.5 | 5 | 6.5 |
| 終含水量 % | 15 | 0.3 | 1 | 0.1 | 0.1 | 0.1 |
| 平均粒徑 mm | 6.5 | 0.05 | 4.7 | 0.5-0.7 | 0.5 | 5 |
| 物料堆積重度 kg/m2 | 770 | 800 | 1890 | 1100 | 1500 | 750 |
| 熱風度 m3/kg | 39000 | 5400 | 10750 | 9800 | 6500 | 16000 |
| 入口氣體溫度 ℃ | 600 | 165 | 500 | 180 | 650 | 570 |
| 物料出口溫度 ℃ | 42 | 100 | 70 | 80 | 75 | |
| 加熱方式 | 煤氣 | 蒸汽式電加熱 | 重油 | 燃煤熱風爐 | 重油 | 重油 |
| 裝料系數 | 6.3 | 7 | 7.5 | 7.8 | 18 | |
| 轉速 r.p.m | 4 | 4 | 3.5 | 3 | 4 | 2 |
| 傾斜度 m/m | 0.04 | 0.005 | 0.03 | 0.05 | 0.05 | 0.043 |
| 抄板數目 | 12 | 24 | 12 | 22 | 內筒外面 8 外筒內面 16 | 內筒外面 6 外筒內面 12 |
| 干燥器直徑 m | 2.0 | 1.5 | 2 | 2.3 | 外筒 2 內筒 0.84 | 外筒 2.4 內筒 0.95 |
| 干燥器長度 m | 20 | 12 | 17 | 15 | 10 | 16 |
| 驅動功率 kw | 22 | 7.5 | 15 | 11 | 11 | 15 |
