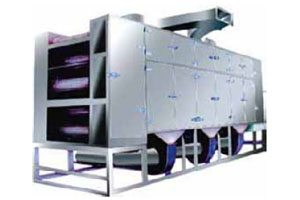

DW Multi-layer Mesh-Belt Dryer
The belt drier is a continuous drying equipment in batch production. It is suitable for drying the raw materials that is in the shape of piece, strip or granule and is good in permeability.
Detailed description
Description：
DW series many layers belt dryer is used in the material hard to dry and low dry speed. The equipment structure is compact. It covers small area with easy operation, convenient maintain and steady running. The equipment extend and promote the heat wind circle oven which design the dryness process with different heat wind circle as per the dryness characteristics of materials. It is widely used in chemical, metallurgy industry, food, packaging. The dryer has lots of superiorities as high efficiency, saving energy, easy management, larger output, constant product and varied ability.
Product introduction：
The belt drier is a continuous drying equipment in batch production. It is suitable for drying the raw materials that is in the shape of piece, strip or granule and is good in permeability. Particularly it is suitable for such raw materials that contain high moisture and are not permitted high temperature for example， dehydrated vegetable, catalyst, drinking tablet of Chinese traditional medicine. Its features are fast in drying speed, strong in vaporization, good in quality of products. Typical products Dehydrated vegetable, granule feed, monosodium glutamate, check extraction， organic pigment, synthetic rubber, propylene fiber, medicine, medical material, small wooden products, plastic products, aging or solidifying for electronic elements. For pasted raw material such as filter cake, it can be dried after shaped through granulator or extruder.
Technical parameters：| 型號 | DW3-1.2-8 | DW3-1.2-10 | DW3-1.6-8 | DW3-1.6-10 | DW3-2-8 | DW3-2-10 | ||
| 單元數(shù) | 4X3 | 5X3 | 4X3 | 5X3 | 4X3 | 5X3 | ||
| 干燥段長 m | 24 | 30 | 24 | 30 | 24 | 30 | ||
| 鋪料厚 mm | 10-80 | |||||||
| 使用溫度 ℃ | 50~140 | |||||||
| 蒸汽壓力 Mpa | 0.2~0.8 | |||||||
| 蒸汽耗量kg/h | 360-600 | 420-720 | 450-840 | 480-960 | 480-960 | 630-1350 | ||
| 換熱面積m2 | 816 | 1020 | 1056 | 1320 | 1344 | 1680 | ||
| 干燥強度 kgH2O/h | 150-450 | 220-550 | 240-600 | 280-750 | 280-750 | 350-900 | ||
| 內(nèi)機總功率 KW | 30.8 | 37.4 | 42 | 51 | 56 | 68 | ||
| 外機總功率 KW | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | 72.5 | ||
| 外形尺寸m | 9.77X2.2X4.5 | 11.77X2.2X4.5 | 9.77X2.6X4.5 | 11.77X2.6X4.7 | 9.77X3.06X4.9 | 11.77X3.06X4.9 | ||
| 總重kg | 4800X3 | 5780X3 | 5400X3 | 6550X3 | 6350X3 | 7800X3 | ||
|
注：對于干燥溫度在250~350℃時，本公司可根據(jù)實際物料進行特殊設(shè)計。 |
||||||||
