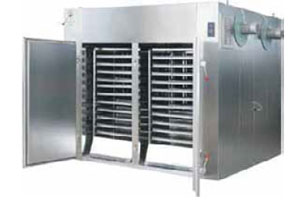

Model (GMP) Oven For Medicine Use
The three kinds of heat source used for heating are steam, electricity, both steam and electricity.
Detailed description
Features：
● The three kinds of heat source used for heating are steam, electricity, both steam and electricity.
● Operation temperature: steam,50-140℃,Max.150℃; electricity, 50-350℃. The temperature can be controlled automatically. Moreover it can be recorded through recorder.
● The inner wall of oven body is fully welded . Every place of transition adopts circular arc transition design and no dead coner.
● ● The seal property of whole machine is good . Being adopted unique guide rail seal apparatus, the seal property can be guaranteed.
● The air inlet is equipped with high effective air filter and the damp exhaust outlet is equipped with middle effective air filter.
● The double doors of oven adapt mechanical interlock apparatus.
● All parts inside the oven can be assembled and disassembled quickly in order to clean conveniently.
● The control system has text display and touch screen for your choice.
● The whole machine is in conformity with the requirements of GMP.
Technical parameters：
Technical parameters：|
技術參數\ 型號規格 |
每次干燥量 (Kg) |
風機功率 (KW) |
耗用蒸汽 (Kg/h) |
烘車 (輛) |
烘盤 (只) |
外形尺寸 L×W×H(mm) |
上下溫差 (℃) |
|
GMP-0 |
35 |
0.45 |
8 |
/ |
16 |
1130×1100×1750 |
±2 |
|
GMP-I |
120 |
0.45 |
18 |
2 |
48 |
2300×1200×2000 |
±2 |
|
GMP-II |
240 |
0.9 |
36 |
4 |
96 |
2300×2200×2000 |
±2 |
|
GMP-III |
360 |
1.35 |
54 |
6 |
144 |
3430×2200×2000 |
±2 |
|
GMP-IV |
480 |
1.8 |
72 |
8 |
192 |
4460×2200×2290 |
