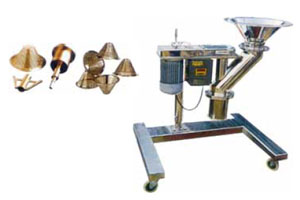

KZL Series High Speed Geinging Granulator
The specifications and shapes of granule made by all kinds of granulating process and different granulator are different.Thegranul with basicsimilarshape and specification can be got when the granulated granule is cut by knives with high speed in this machine.
Detailed description
Features：
●There is less heat and dust in work.
●The fixed screen is made from stainless steel and it can not damage easy.
●The gap between crush knives and screen can be adjusted.
● It can treat adhesive, glue, hot and wet raw materials.
Application：
● The specifications and shapes of granule made by all kinds of granulating process and different granulator are different.Thegranul with basicsimilarshape and specification can be got when the granulated granule is cut by knives with high speed in this machine.
● All parts in this machine are made of stainless steel. Its assembling and disassembling and cleaning are very convenient.
Technical parameters：|
model |
100 |
180 |
300 |
|
The stator diameter ( mm) |
100 |
180 |
300 |
|
Stator Length ( mm) |
96 |
178 |
305 |
|
Production capacity (kg / h) |
20-150 |
100-1500 |
500-2500 |
|
Power (kw) |
0.75 |
1.5 |
5.5 |
|
Speed (rpm) |
180-1400 |
175-1400 |
200-1400 |
