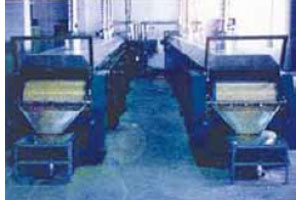

Molten Property Granulator
This device is suitable for melting (or softening point) at 300 ℃ or less need a variety of grain products, and the "cold crystallization" characteristics of the product.
Detailed description
Features：
This device has the following main features: a thin strip heat and atomization spray cooling, the molten liquid rapidly curing; in the discharge end of the strip due to bending of the change, so that network with a combination of surface and curing materials have separated , when the dust discharge minimal particle shape to be protected; distributor and strip using double-frequency control, according to production capacity and material properties of parameter adjustment, control; three-stage temperature control to ensure stable system operation, and reliable.
Description：
CCF rotary belt forming device is the use of low melting point material properties, according to the viscosity of molten materials, the scope of devices through a special fabric cloth will melt are uniform in their moving strip on the bottom, the bottom of the strip set of continuous cooling spray device under the action of the material moving, transportation to the process of cooling, curing, so as to achieve the purpose of forming granulation. Depending on the material properties and process requirements of the primary, to select the external rotation-type, air rotary and reciprocating distributor of different principles, based on the material nature and purpose of use, choose intermittent dropping, continuous out of the full width of the overflow and other fabrics way to get hemisphere, respectively, strip and sheet products.

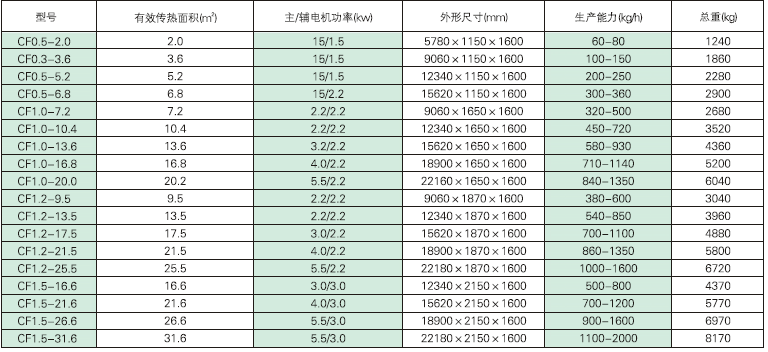

Technical parameters：
