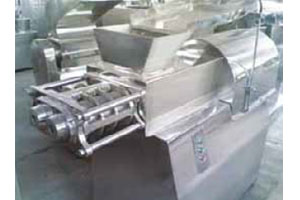

SET Series Double-Srew Extruding Granulator

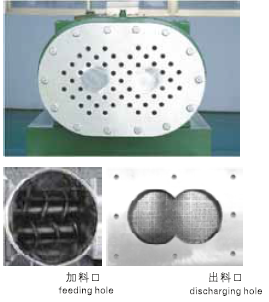

SET Type Double-Screw Granulator has two models of front and side for material to be extrude out. Diameters of granular product granulated by front model may be normally selected between 1.5mm-12mm, and by side model can be normally selected between 0.7mm-2.0mm.Granules are cylindrically shaped. The rate of end product is equal to more than 95%.
Detailed description
Features：
SET Type Double-Screw Granulator has two models of front and side for material to be extrude out. Diameters of granular product granulated by front model may be normally selected between 1.5mm-12mm, and by side model can be normally selected between 0.7mm-2.0mm.Granules are cylindrically shaped. The rate of end product is equal to more than 95%.
Description：
In the dispersed system of coexistent composition of solid power and liquid, besides with solid phase on the former, make use of the self cohesiveness of the dispersed system (or add binder) to make basic partials of solid powder bind each other and increase to form mass granule with uniform fair-size by means of exerting force) such as extruding force, gravity, centrifugal force, impulsive force, gravity, centrifugal force, mechanical force, impulsive force air flowed. Complete sets of equipment for wet granulation mainly consist of equipment for mixing,granulating,dry in and auxiliary system. Powder material being mixed is delivered into granulator sideband then to get end granular product through drying ,thus achieving the goal of granulation.
Technical parameters：
|
型號 |
螺桿直徑 |
電機功率kw |
轉速rpm |
外形尺寸 L×D×H mm |
設備重量kg |
|
SET-100 |
100 |
7.5 |
11~110 |
2000×500×1000 |
810 |
|
SET-140 |
140 |
15 |
11~110 |
1920×800×1430 |
810 |
|
SET-180 |
180 |
22 |
11~110 |
3000×870×880 |
810 |
