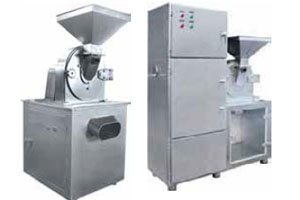

30B/30BX Series Universal Grinder
This machine has wide application and is wide used for pharmaceutical industry, chemical industry, pesticide industry, foodstuff industry, grain industry and so on.
Detailed description
Features：
● This machine has wide application and is wide used for pharmaceutical industry, chemical industry, pesticide industry, foodstuff industry, grain industry and so on.
● This machine uses the relative motion between movable and fixed teech disc, the raw materials to be curshed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials, finally the raw mateials are crushed.
Technical parameters：
| 型 號 | 20B-C | 30B-C | 40B-C | 60B-C |
| 生產能力(kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| 主軸轉速(r.p.m) | 4500 | 3800 | 3400 | 2800 |
| 進料粒度(mm) | 6 | 10 | 12 | 15 |
| 成品細度(目) | 60-120 | 60-120 | 60-120 | 60-120 |
| 電機功率(kw) | 4 | 5.5 | 11 | 15 |
| 吸塵風機(kw) | 1.5 | 1.5 | 1.5 | 2.2 |
| 外型尺寸(長x寬x高)(mm) | 1100x600x1650 | 1200x650x1650 | 1350x700x1700 | 1550x1000x1750 |
