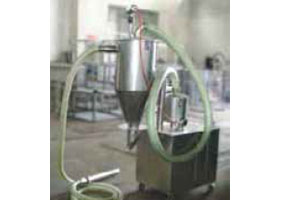

ZJ Serial Vacuum Feeder
Model ZJ serial vacuum feeder is a third-generaticn new-type vacuum feeder recently developed by our company. it has advantages of fast feeding, long service period, simple operation, clean and in conformity with GMP requirement.
Detailed description
Features：
● Fast feeding of materials.
● Long time for continuous working.
● No leakage, clean and healthy, suitable for clean workshop.
● Compact size, easy moving and simple operation.
●Equipped with fast-feeding clamping and facilitating assembling, disassembling and cleaning and in conformity with the requirement.
Description：
Model ZJ serial vacuum feeder is a third-generaticn new-type vacuum feeder recently developed by our company. it has advantages of fast feeding, long service period, simple operation, clean and in conformity with GMP requirement.
Application：
● Used for powder, small grain and ball materials with diameter less than 5mm.
● Used for materials feeding for various kinds of sealed containers and equipments such as two-dimension, three-dimension, double-cone, V-shaped etc.
Technical parameters：| Model / Parameters | ZSL-Ⅲ-2.2 | ZSL-Ⅲ-3.0 | ZSL-Ⅲ-4.0 | ZSL-Ⅲ-5.5 | ZSL-Ⅲ-7.5 |
| Working Pressure (Kpa) | <18 | <20 | <22 | <28 | <31 |
| Air flow rate (m 3 / H) | 210 | 300 | 330 | 370 | 480 |
| Power (kw) | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 |
| Transmission capacity (Kg / h) | 900-1200 | 1200-1500 | 1500-1800 | 1800-2100 | 2100-2400 |
Note: 1. the output temperature refers to the input temperature at 20 ℃ when the temperature rise.
2. the value of oil by burning 4800KJ / kg calculations.
