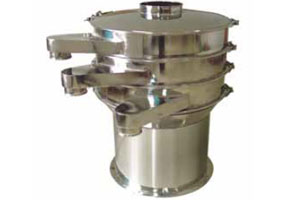

ZS Series Vibrating Sieve
The machine consists of hopper, vibration chamber and coupling and motor. There are eccentric wheel, rubber soft parts, main shaft bearing and so on.
Detailed description
Description：
This machine is high iffective sieving equipment used wide in China now. It adapts the principle of vibration to realize the sieving of plenty of raw materials. It is wide used for metallurgy industry, chemical industry, pharmaceutical industry, grain industry and so on.
Application：
The machine consists of hopper, vibration chamber and coupling and motor. There are eccentric wheel, rubber soft parts, main shaft bearing and so on. The adjustable eccentric weight can drive to the central line of main shaft through motor. Under the unstable state, it produces centrifugal force that makes raw material form vortex in the sieve. The size of amplitude of eccentric weight can be regulated in accordance with the different raw materials. The whole structure of machine is compact,small in volume, no dust, low in noise, low in energy consume, convenient in moving and maintenance.
Technical parameters：|
model |
Production capacity (kg / h) |
Number of mesh (mesh) |
Electric power (kw) |
Spindle speed (r / min) |
Dimensions (mm) |
Weight (kg) |
|
ZS-350 |
60-500 |
12-200 |
0.55 |
1380 |
540 × 540 × 1060 |
100 |
|
ZS-515 |
100-1300 |
12-200 |
0.75 |
1370 |
710 × 710 × 1290 |
180 |
|
ZS-650 |
180-2000 |
12-200 |
1.50 |
1370 |
880 × 880 × 1350 |
250 |
|
ZS-800 |
250-3500 |
5-325 |
1.50 |
1500 |
900 × 900 × 1200 |
300 |
