LPG Series High Speed Centrifugal Spray Dryer
Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as: solution, emulsion, suspension and pumpable paste states
Detailed description
Features：
● The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.
● Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.
● The producition procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment
Description：
Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as: solution, emulsion, suspension and pumpable paste states,For this reason,when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Principle：

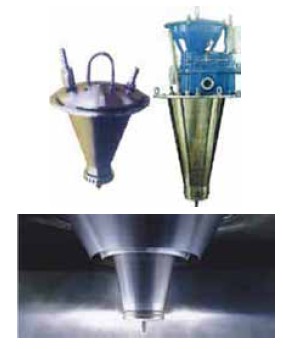

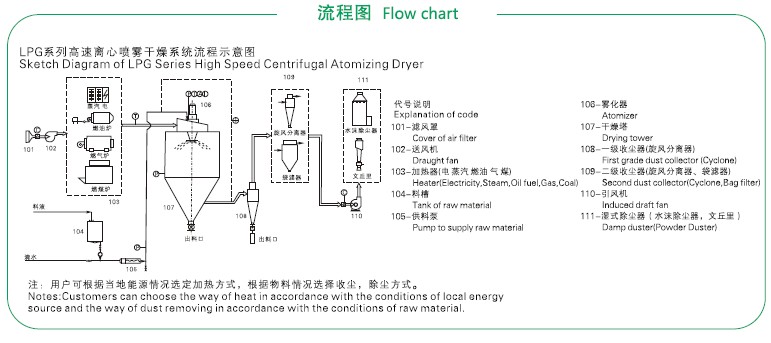

After the air been filtered and heated the air enters into the air distributor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Throug the very short time of contacting the heat air,the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
Application：
● Chemical Industry: Sodium fluoride(potassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
● Plastics and resin: AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, polychloroprene and etc.
● Food Industry:Fatty milk powder, protein, cocoa milk powder, substitute milk powder, egg white(yolk), food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth.

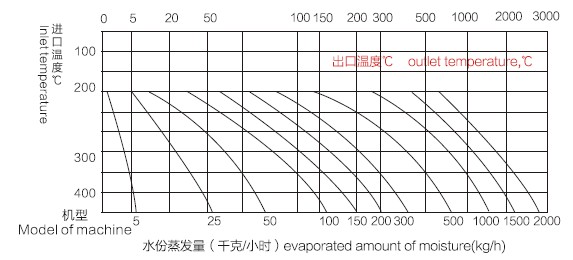

Technical parameters：
| i t e m/p a r a me t e r | s p e c：LPG | |||||
| 5 | 25 | 50 | 100 | 150 | 200-2000 | |
| i n l e t t e mp e r a t u r e℃ | 140~350 | |||||
| o u t l e t t e mp e r a t u r e ℃ | ~80-90 | |||||
| Ma x . wea vt ae pr o rc aa tp ia oc ni t ykg/h | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| Centrifugal spray head rotation in the form | Compressed air drive | me c h a n i c a l t r a n s mi s s i o n | ||||
| <='' font=''> | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| s p r a y i n g d e s c d i a me t e r（mm） | 50 | 100 | 120 | 140 | 150 | 180-340 |
| h e a t s u p p l y | Electricity | Electricity + steam | Electricity + steam, oil, gas | By the users themselves | ||
| Ma x e l e c t r i c h e a t i n g p o we rKW | 9 | 36 | 63 | 81 | 99 | |
| o v e r a l l d i me n s i o n s（m） | 1.8×0.93×2.2 | 3×2.7×4.26 | 3.7×3.2×5.1 | 4.6×4.2×6 | 5.5×4.5×7 | depends n o het onccrete oncditions |
| d r i e d p o wd e r c o l l e c t i n g% | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
注：部分參數設計時視不同物料有所調整，以設計為準。
