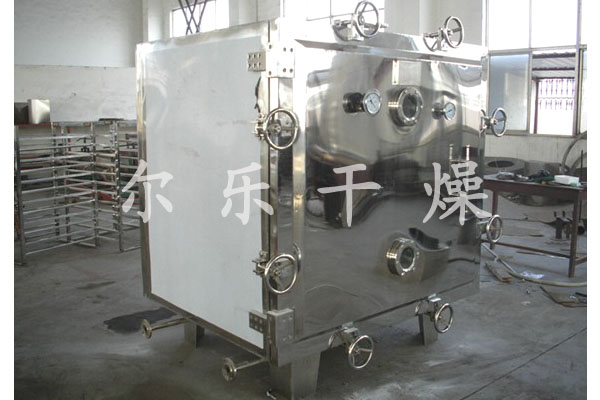

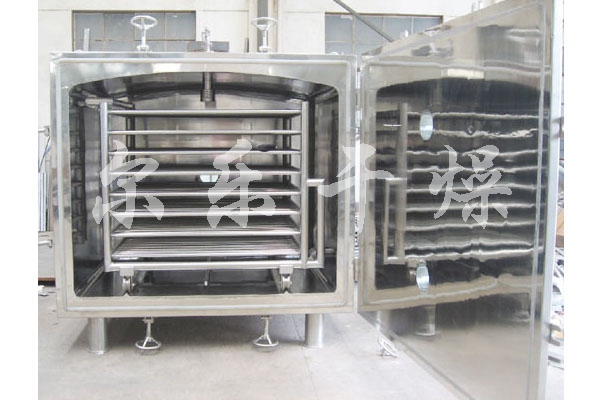

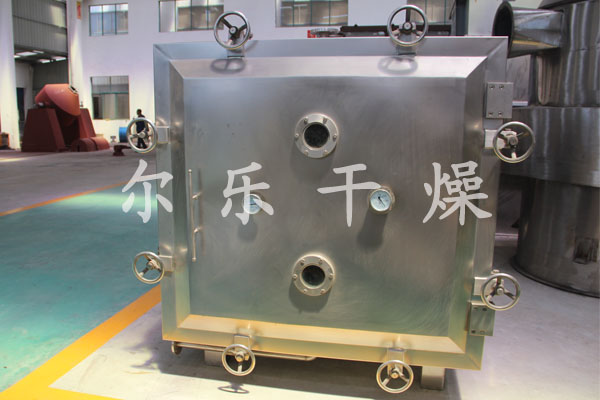

Chongqing, a Pharmaceutical Company (Material: API drying) FZG-15 type, 20 type square vacuum dryer
Application client：Chongqing, a Pharmaceutical Company (Material: API drying) FZG-15 type, 20 type square vacuum dryerProduct selection：FZG-15 type, 20 type square vacuum drier
Detailed description
Features: ● boiling point of the material under vacuum solution is reduced, so that the evaporator heat transfer driving force increases, and therefore a certain amount of heat transfer can save evaporator heat transfer area. ● source for operation of evaporation may be low pressure steam or surplus heat steam. ● less heat loss of evaporator. ● can be disinfected before drying process, the drying process without any impurities mixed in line with GMP requirements. ● a static vacuum dryer, so the body dry material will not be damaged. Principle: The so-called vacuum drying, the material is dried in a vacuum, heating and drying, if the use of a vacuum pump air and humidity, is to speed up the drying rate. Technical Parameters:
|
specification
|
YZG-600
|
YZG 800
|
YZG 1000
|
YZG 1400
|
FZG-10
|
FZG-15
|
FZG-20
|
|
Oven internal dimensions (mm)
|
φ600 × 976
|
φ800 × 1247
|
φ1000 × 1527
|
φ1400 × 2054
|
× 1060 × 1500
1220
|
1400 × 1500
× 1220
|
1800 × 1500
× 1220
|
|
Oven External dimensions (mm)
|
× 810 × 1135
1020
|
× 1045 × 1700
1335
|
× 1190 × 1693
1500
|
× 1675 × 2380
1920
|
1720 × 1924
× 1513
|
1924 × 1513
× 2060
|
2500 × 1924
× 1513
|
|
Drying rack layer
|
4
|
4
|
6
|
8
|
5
|
8
|
12
|
|
Interlayer distance (mm)
|
81
|
82
|
102
|
102
|
122
|
122
|
122
|
|
Baking tray size (mm)
|
310 × 600 × 45
|
520 × 410 × 45
|
520 × 410 × 45
|
460 × 640 × 45
|
640 × 460
× 45
|
640 × 460
× 45
|
640 × 460
× 45
|
|
Number of baking tray
|
4
|
8
|
12
|
32
|
20
|
32
|
48
|
|
Drying rack tube so that pressure (MPa)
|
≤0.784
|
≤0.784
|
≤0.784
|
≤0.784
|
≤0.784
|
≤0.784
|
≤0.784
|
|
Drying rack temperature (℃)
|
35-150
|
35-150
|
35-150
|
35-150
|
35-150
|
35-150
|
35-150
|
|
The degree of vacuum inside the load (MPa)
|
-0.1
|
-0.1
|
-0.1
|
-0.1
|
-0.1
|
-0.1
|
0.1
|
|
In the of-0.1MPa, temperature 110 ℃ heating
, the water vaporization rate (kg / m2 · hr)
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
7.2
|
|
With a condenser, the vacuum pump models,
power (kw)
|
2X-15A 2KW
|
2x-30A 3KW
|
2x-30A 3KW
|
2x-70A 5.5KW
|
2x-70A 5.5KW
|
2x-70A 5.5KW
|
2x-90A 2kW
|
|
When not in condenser
vacuum pump model, power (kw)
|
SZ-0.5 1.5KW
|
SZ-1 2.2kW
|
SZ-1 2.2kW
|
SZ-1 2.2kW
|
W-2 4KW
|
W-2 4KW
|
W-2 5.5KW
|
|
Oven Weight (kg)
|
250
|
600
|
800
|
1400
|
1400
|
2100
|
3200
|
The above data. Old reference only. If you have special requirements, the factory to provide design and consulting services.
Note: If using a condenser, a solvent in raw material can be recovered through the condenser; such as the use SK series water ring vacuum pump, condenser can not save energy investment.
